2015 Gantry Plaza State Park Water Quality

sampling2

2015 Citizen Water Quality Testing Program Report

by Josue Silvestre, Engineer in Training
HarborLAB Water Quality Sampling Coordinator

HarborLAB takes part in the Citizen Water Quality Testing Program (CWQTP), an initiative of the New York City Water Trail Association that coordinates weekly grassroots monitoring of metropolitan area waterways for a 20-week period from May through October. I had the opportunity to lead HarborLAB’s participation in 2015. Our focus was again Gantry Plaza State Park, where we serve cumulatively thousands of children, teens, and adults through public paddling programs and special partnerships with organizations serving disadvantaged youth.

We received training from The River Project and a research team at Columbia University’s Earth Institute on water sampling at docks and shorelines. The sampling season launched on May 28 with 38 sites from Yonkers to Jamaica Bay. We measured nitrate and phosphate with in-situ testing kits and brought chilled samples rapidly to five labs to test for Enterococcus, a gut bacterium indicative of sewage. While nitrate and phosphate levels are immediately registered, bacteria must be incubated for more than 24 hours.

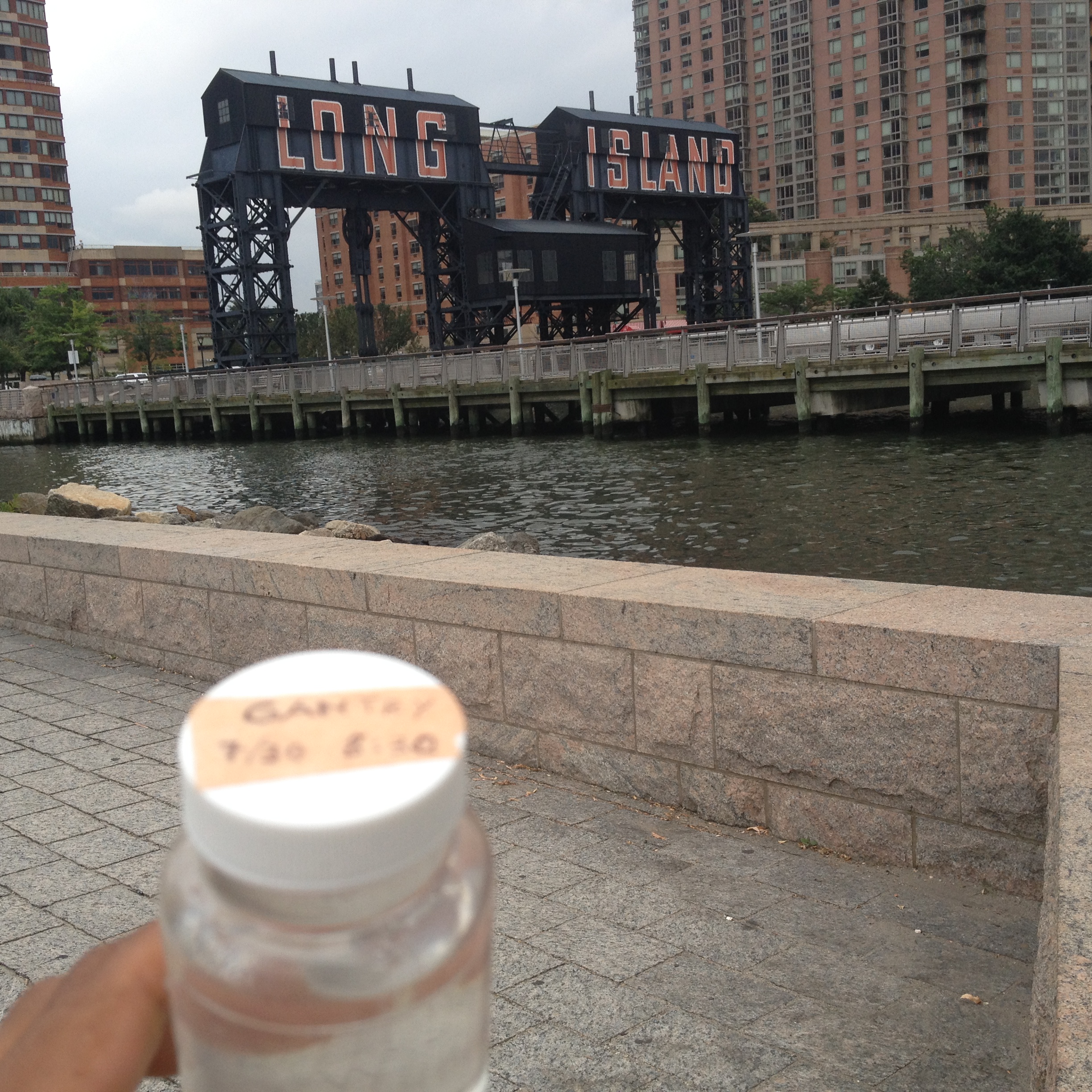

Gantry Plaza State Park is on the East River, a tidal strait within the Hudson River Estuary. The CWQTP concerns itself with wastewater contamination of the East River due to past and recurring contamination from combined sewer outfalls (CSO) and malfunctioning of wastewater treatment facilities. Paddling groups and nonprofit littoral ecology experts assert that because NYC Department of Environmental Protection surveys sample in deeper water, official statistics don’t account for bacterial colonies near shore, where human contact and wildlife activity is greatest. NYC Department of Health water testing focuses on swimming beaches, not kayak and canoe launches.

HarborLAB cancels programming at Gantry Plaza State Park on days following significant rain as a precaution against CSO contamination.

Enterococcus levels are presented as a Most Probable Number (MPN), or the number of colonies per 100 ml of water counted after incubation. These numbers set thresholds for recommending public notifications or temporary closures. New York City Department of Health Enterococcus standards for swimming are as follows:

MPN <35 = acceptable for swimming

MPN between 35 and 104 = unacceptable if level persist

MPN >104 = unacceptable for swimming

Throughout the 2015 CWQTP season (see figure 1) lab results showed that the presence of Enterococcus at Gantry Plaza State Park usually measured within acceptable conditions for swimming. It was observed that on three occasions Enterococcus levels at the site were unacceptable for swimming. Similar results were obtained in the previous 2014 CWQTP season (see figure 2) with one measurement exceeding the limit acceptable for swimming.

These spikes might correlate to rainfall prior to measurement (with one of the three a possibly anomalous result), as seen in figure 3, provided by the Riverkeeper organization through the citizen testing data web tool hosted on its website. That is, a wetter season in 2015 may be the cause for having have three peaks in Enterococcus counts compared to one peak in 2014. The amount of rainfall in the 2014 season, from May 22 to October 02, was 14.76 inches, according to the National Weather Service Forecast Office. That was 1.59 inches less than the 2015 season’s 16.35 inches for a same period (May 21-October 01).

Nitrate (NO3) and Phosphate (PO4) in-situ testing was new to the 2015 season. Nitrates and phosphates from urban runoff can cause eutrophication, a process that depletes lakes, streams, and rivers of oxygen. The procedure for in-situ testing was straight forward. The test kit consisted of two small tubes with nitrate and phosphate reactors and a small cube (see figure 4). Each tube would absorb water from a small cube of the sampled water. The tubes would change color after a few minutes indicating the level of NO3 or PO4 respectively. Throughout the season, low concentrations of Nitrate and Phosphate testing were recorded and these remained constant.

For me, as an international student with an engineering background in water resources, and an advocate of sustainable water management, constant monitoring of water bodies is of utmost relevance. It informs environmental regulators whether the water body supports a healthy aquatic ecosystem. While participating with HarborLAB collecting water samples, I came to appreciate the importance of keeping New York City’s waterways pollutant free. It helps revitalize shores once plentiful with aquatic life and maintain a balance in the ecosystem. In addition to revitalizing shores, effectively protecting our water bodies from pollutants creates an increased public interest in recreational water activities.

2015ent

Fig. 1 2015 CWQT Season Enterococcus test results

ent2014

Fig. 2 2014 CWQT Season Enterococcus test results

entrain

Fig.3 Enterococcus count and rainfall correlation. (Extracted from Riverkeeper.org/water-quality/citizen-data.)



nitratetest

Fig. 4 Nitrates and Phosphates in-situ testing kit



HarborLAB Distributes 100 Fruit Trees!

tree2

HarborLAB distributed 100 apricot, pear, and fig trees in partnership with MillionTreesNYC, New York Restoration Project, Queens Library, and Triple R Events. Our sidewalk fruit forest of baby trees was spoiled by a morning of gentle rains and an afternoon of cooing adoration from adoptive gardeners. Huge thanks to organizer Lynne Serpe of both HarborLAB and Triple R Events. Volunteers from HarborLAB included Liz Lopez and son Danny, Mairo Notton and son Tormi, Irene McLoughlin, Patricia Erickson, Roy Harp and sister Viola Anderson, Erik Baard, and Bob Din.

Trees absorb storm water that would otherwise contribute to combined sewer overflows (street water and bathroom flushes go into the same pipes) that damage our estuary. Fruit trees also sustain pollinators.

HarborLAB is restoring a section of crumbling waterfront bulkheads as a welcoming, green, and beautiful shoreline for education and passive recreation, in addition to boating. Thanks to today’s work we’ll have a new apricot and fig tree for human consumption in the edible uplands section of the GreenLaunch. The rest of the site will be devoted to indigenous species. Our intertidal area will be lush with spartina marsh grass, topping bladderwrack seaweed and mussels.  Our slopes will be resplendent with shadbush, inkberry, beach plum, and other natives. We’ll also have a hackberry tree and a tulip tree. Our upland with be edged by even more butterfly-sustaining goldenrod and milkweed than we had this year. We’re seed gathering now!

tree3

tree1

NYCDEP Discovers a Major Source of Hallets Cove Bacteria!

HarborLAB brought Hunters Point Community Middle School teachers to meet with Socrates Sculpture Park, which administers Hallets Cove under an agreement with NYC Department of Parks and Recreation. HarborLAB also delivered oysters to the neighborhood for the Billion Oyster Project.

HarborLAB brought Hunters Point Community Middle School teachers by kayak to meet with Socrates Sculpture Park, which administers Hallets Cove under an agreement with NYC Department of Parks and Recreation. HarborLAB also delivered oysters to the neighborhood for the Billion Oyster Project.

The NYC Department of Environmental Protection has discovered that one of the NYC Housing Authority buildings on Hallets Point has been discharging untreated sewage into Hallets Cove. About 140 people live in each of the 22 buildings of the Astoria Houses.

The discharge was revealed when the DEP put blue dye into the system and observed the dye entering the cove, a method for which HarborLAB has long lobbied publicly and in private meetings with the NYCDEP. We’ve been the leader among boating groups in lobbying for water quality improvement at Hallets Cove and are very grateful for the NYCDEP’s extra efforts, despite many other obligations, which produced this great new progress. We also thank NYCHA managers for requesting additional testing of its systems, which directly led to this new knowledge.

Further testing, as promised by the NYCDEP, must be done. This first clear identification of a contamination source, however, is a great start. HarborLAB looks forward to providing educational and fun programming at Hallets Cove if water quality there vastly improves.

HarborLAB is also grateful to Howard Hemmings through the NYCHA Green and Gardening program, who took our concerns seriously and relayed them through official channels, and to Astoria Houses Residents Association President Claudia Coger, who first informed us of sewage backups and related health concerns there. We also thank Vanessa Jones-Hall,  also an official with the residents association, for being a steady conduit of communication. HarborLAB volunteer and western Queens environmental leader Lynne Serpe introduced HarborLAB to these community partners. We’re also grateful to former NYCDEP Associate Commissioner for Public Affairs Matthew Mahoney, now with United Water, who first suggested dye testing.

Preliminary findings by NYCDEP investigators, at Mr. Mahoney’s request in 2012, were that dog and bird feces might be the culprit (much was seen), as it often is throughout the country. Water tests further from shore, in greater depths, were less worrying. We must still test for non-human sources of contamination.

In early September, HarborLAB stepped up its efforts to address the Hallets Cove issue by pushing for a meeting with the NYCDEP. We wanted to both put Hallets Cove on the front burner and to rebuild some lost public confidence. Responding to information from HarborLAB, NYCDEP also invited the NYC Water Trail Association, which coordinates regional water sampling by volunteers. At the meeting the NYCDEP agreed to do more testing in partnership with HarborLAB (sampling in the off-season of late autumn through early spring), whenever possible including the CUNY students we serve. Interestingly, the NYCDEP agreed to also sample sand, to determine the species of bacteria, and therefore hosts, an even more exciting educational opportunity. Sand has only recently been more adequately recognized as a growth medium for bacteria and a transport mechanism. Results and program details will be released in the spring.

Today, however, a NYCDEP official released this exciting information to HarborLAB:

Erik – On September 22, DEP personnel responded to a request from management to inspect the sanitary drains in the Astoria Houses. They discovered uncapped drains that were allowing sanitary flow from one of the buildings to enter the storm sewer and discharge into the cove. This was confirmed by means of a dye test. They issued a Commissioner’s Order for the condition to be corrected (within 30 days), and a follow-up inspection will be made to confirm that the work has been done or the Houses will be issued a Notice of Violation to be adjudicated before the Environmental Control Board.

Children playing with the sand at Hallets Cove. Public boating may have encouraged a false sense of safety at the cove, where bacteria counts are high. Photo by HarborLAB volunteer Audrey Dimola.

Children playing with the sand at Hallets Cove. Public boating may have encouraged a false sense of safety at the cove, where bacteria counts are high. Photo by HarborLAB volunteer Audrey Dimola.

HarborLAB has for its existence opted to not provide children’s programming at Hallets Cove because intestinal bacteria counts in its near-shore waters were alarmingly high, even in dry weather. Normally such elevations are caused by combined sewer overflows when it’s raining. Runoffs from streets force engineers to open sewer gates, rather than have fouled water back up into neighborhoods, because rain and toilets go into the same pipes and treatment plants.

HarborLAB initiated weekly water sampling at Hallets Cove as part of the NYC Water Trail Association’s “Citizen Science” program, coordinated by Rob Buchanan. Testing was done at The River Project and LaGuardia Community College, and Riverkeeper provided great public outreach. Bacteria counts were so high and sustained that HarborLAB Founder Erik Baard called for children’s programs to be suspended at Hallets Cove until the problem was identified and addressed. That we saw high bacteria counts in dry weather told us that even occasional favorable results from weekly sampling on Thursdays were meaningless as a guarantor of public safety on weekends because without knowing the source (not rain) we couldn’t know when contamination would spike again. Erik also founded the LIC Community Boathouse, which continued with children’s programming at Hallets Cove. Some doubted the reliability of the sampling and redundantly sampled Hallets Cove (we later withdrew from that activity rather than be wasteful or political), but received similar results.

For years, HarborLAB has lobbied for green infrastructure, dye testing, and other innovative measures at Hallets Cove, which should be a safe destination for educational recreation in a habitat restoration. We still believe that Hallets Cove should have the agreed upon extra testing and should be a showcase for green design and clean-tech innovation.

Waterfowl at Hallets Cove. Photo by Erik Baard.

Waterfowl at Hallets Cove. Photo by Erik Baard.

HarborLAB and Queens Library Tree Giveaway!

Come get your pear, apricot, and fig trees at the Broadway Library in long Island City on October 11!

Better yet, come help HarborLAB to distribute the trees to city residents as a friendly and informative volunteer! HarborLAB and Triple R Events are coordinating and staffing a MillionTreesNYC and New York Restoration Project fruit tree giveaway from 1PM-3PM on Saturday, October 11.

HarborLAB coordinates tree giveaways each spring and fall. To help, email volunteer@harborlab.org with the subject line “Tree Giveaway.” Lynne Serpe and Erik Baard are managing outreach and volunteer coordination.

To register for your free tree, click here:

http://treegiveaways.com/qnlib

Why is an estuary group distributing trees? Plants and the soft earth surrounding them absorb rainwater that would otherwise overwhelm our sewer system. When our sewer system reaches maximum capacity, engineers must release untreated sewage into our waterways or back up into our neighborhoods and homes. Trees do a wonderful job of soaking up that excess water and using it to grow, or shedding it into air through leaves. Locally grown fruit also reduces our city’s carbon footprint, slowing sea level rise, ocean acidification and warming, and climate chaos.

treegiveaway

“Jane’s Walk” to Our Reawakening Waterfront!



WP_20140503_003

Mitch Waxman, crouching, and MAS Jane’s Walk participants in front of the HarborLAB gate and boats. Newtown Creek Alliance board member Laura Risi Hofmann towards the left, in bright blue shirt. Photo by Erik Baard.

HarborLAB was honored to be a featured stop on the Greenpoint-to-Long Island City “DUPBO” 2014 Jane’s Walk.  Newtown Creek Alliance historian Mitch Waxman guided the tour, a walking conversation, sharing insights about development, preservation, sustainability, resilience, and cultural vitality. In NYC, the prestigious Municipal Art Society organizes the annual, free urban planning walks honoring Jane Jacob‘s spirit of criticism and query.

Erik Baard, who interviewed Jane Jacobs in the 9/11 aftermath, greeted the crowd that arrived at the end of Vernon Boulevard, where a bridge once spanned the Newtown Creek to Manhattan Avenue, Brooklyn.

What made our site so interesting? It’s that we’re creating the greatest length of green, soft shoreline on the Newtown Creek!

Many thanks to Citizens Committee for NYC for our seed grant (more on that to come) to begin transforming our 125′ waterfront, kindly provided to us by Schumann Properties. Rather than rebuilding our crumbling bulkhead, we’ll follow New York State Department of Environmental Conservation guidelines for using salt tolerant native plantings to stabilize shorelines. We’ll also restore wetlands in the intertidal zone with spartina, mussels, oysters, and other indigenous life. Upland we’ll grow edibles in planters, including hardy kiwi and grape for shade. To maximize the service learning value of this project, we’ll invite college students to participate and follow the advice and directives of biologists Dr. Holly Porter-Morgan and Dr. Sarah Durand of LaGuardia Community College.

HarborLAB Facilities Manager Patricia Erickson will oversee safety stairs, platforms, the dock, and other improvements, aided by Mairo Notton and other skilled volunteers. Our space has been too crowded with bricks on pallets since occupation to do much work, but that’s scheduled to change over the next few weeks.

HarborLAB has also begun a campaign to create a bioswale and rain garden at the dead end of Vernon Boulevard. In some sense, this revives a decade-old effort that New Yorkers for Parks ushered into a design in 2006. With our launch site reworked and a green pocket park, Vernon Boulevard will end in a beautiful long stretch of green that improves Newtown Creek water quality by reducing combined sewage overflows.

The Newtown Creek Superfund designation, however, is based on carcinogenic sediments that line its bed and can sometimes rise through the water column when disturbed. Advocacy for dredging is our chief activity on that front. Our vital ally there is the Newtown Creek Alliance. We were happy that this Jane’s Walk included Newtown Creek Alliance Board Member Laura Risi Hofmann, a greenpoint health and green spaces activist, among its saunterers.

Because of the sometimes high sewage bacteria levels (common to all of western Queens’ waterfronts) and industrial pollutants (exceedingly high also in Anable Basin and Steinway Creek), HarborLAB has two blanket policies:  1) We bring boats to cleaner, safer waters in the region for children to enjoy. The Newtown Creek launch is for adults only. 2) We use canoes for venturing East of the Pulaski Bridge, and sit-on-top kayaks for paddling west, where water quality is much better.



WP_20140503_011

HarborLAB boats and the raw 125′ shoreline, facing East to the Pulaski Bridge. Photo by Erik Baard.

The HarborLAB "boat ladder," a launch system used by cultures around the world. Note the crumbling shoreline that we'll slope and stabilize with plantings.

The HarborLAB “boat ladder,” a launch system used by cultures around the world. Note the crumbling shoreline that we’ll slope and stabilize with plantings.

WP_20140503_009

Intertidal area that will be planted with spartina or other native species. Photo by Erik Baard.





HarborLAB Helps Tree Giveaways!

1385469_10151980463899878_1469681023_n

Forest Hills tree giveaway. Photo by Erik Baard. Tulip tree saplings in the foreground.

Seven HarborLAB volunteers helped make the Forest Hills Tree GIveaway organized by Michael Perlman at the Forest Hills Jewish Center and MacDonald Park on October 13 a great success. Help get more trees planted in western Queens with the Queens Public Library! Both events were coordinated with campaign leaders New York Restoration Project and MillionTreesNYC.

If you’d like to join our team in supporting the western Queens tree giveaway, please email volunteer@harborlab.org with the subject line “Broadway LIbrary Trees.” It also helps to join through our Facebook event. Please indicate if you’d like to work the entire event, or the first shift (noon-2PM) or the second shift (2PM-4PM). The program runs from 1PM-3PM.

This is a MillionTreesNYC event coordinated by New York Restoration Project and its local partner, Queens Library at BroadwayGreening Queens Library. HarborLAB volunteers will follow their directions. Our help was requested by Greening Queens Library.

Here’s the link to register for your tree, or to register a tree for the HarborLAB launch site:  http://treegiveaways.com/qnlib. Here’s a general page for NYRP-coordinated tree giveaways in all five boroughs.

Trees and other plants reduce combined sewage overflows, which raise pathogen levels in local waterways. Let’s do all we can as advocates and greeners to make Hallets Cove and other NYC inlets safer, especially for kids. The ability of these trees to absorb CO2 also reduces ocean acidification, perhaps the world’s greatest looming threat to food supplies and ecosystems.

HarborLAB enjoyed great success helping the Forest Hills tree giveaway. Let’s do it again! This is also a great opportunity for HarborLAB to earn salt-tolerant fruiting trees for our launch! We have shadbush (aka service berry) trees for our launch now, and will add persimmon. Maybe some tulip trees, which were the trunks of choice for the first canoes of this harbor?

960170_10151980511609878_1811012233_n

The Forest Hills tree giveaway’s cutest volunteers (Harpo the pooch puts it over the top). Photo by Erik Baard.
